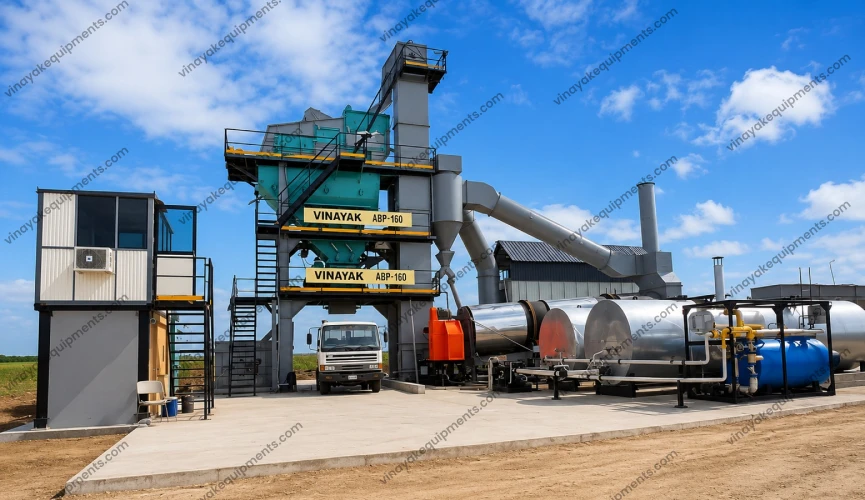

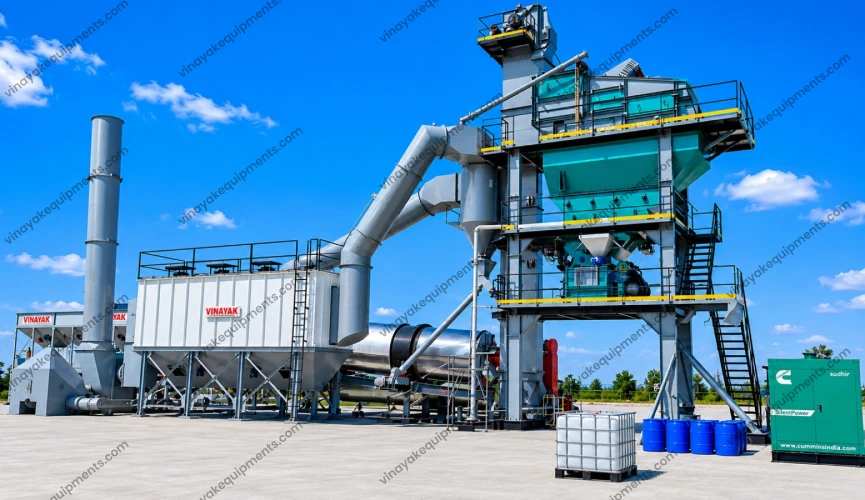

Asphalt Batch Mix Plant

Model	ABP - 80	ABP - 120	ABP - 160
Capacity	80 TPH	120 TPH	160 TPH

Being a leading construction equipment manufacture, we profoundly understand the major spheres of the asphalt mixing plant and accordingly have developed an asphalt mixing plant that holds outstanding consistency throughout the mixing operation of the aggregates, sand, stone dust, and bitumen on standard temperature and delivers exemplary quality mixing needed for road construction and other civil construction ventures. As the asphalt is produced in batches every 40 to 50 seconds, it is also well known as batch mix asphalt plant in several industries.

Asphalt Batch Mix Plant Manufacturer

All the components of this offered batch mix asphalt plant are evolved carefully to ascertain that every process, inclusive of feeding, heating, drying, screening and mixing executes seamlessly, wherein hot aggregates, filler and bitumen weighed and then fed into the mixer. On the completion of mixing, the asphalt is discharged for application or onto the truck. To make the entire asphalt mixing process labor free, it is integrated with SCADA/PLC based control panel that ensures completely untouched asphalt mixing operation.

The easy to move construction of this batch plant make it renowned as mobile asphalt mixing plant or portable asphalt mixing plant, engineered in various sizes and configuration to comply with a variety of requirements, ranging from 80 TPH to 160 TPH. The entire range of our batch mix asphalt plant ensures utmost level of versatility and reliability throughout the life span is a low cost solution for mixing asphalt.

Asphalt Batch Mix Plant Exporters & Suppliers

asphalt batch mix plant manufacturer in india

Salient Features

Batch Mix Plant with Unique Design.
Designed for International Market.
Efficient operation.
Accurate weighing, and stable quality
Siemens Make HMI with Touch Screen.

Modulating burner is designed for low fuel consumption, low noise and easy maintenance
Bag house system meeting stringent environmental regulations on emission standards
PLC Based Control Panel with online print out facility.

TECHNICAL SPECIFICATIONS

ABP MAIN PLANT

Component	Specification	ABP - 80	ABP - 120	ABP - 160
Plant Capacity @ 3 % moisture Content		80 tph	120 tph	160 tph
Cold Feed Bins	No. of Feeders */Total Capacity	4 / 25 m³	4 / 37.5 m³	4 / 43.75 m³
Charging Conveyor	Capacity	100 tph	140 tph	180 tph
Dryer Drum	Diameter x Length	1.6 m x 6 m	1.8 m x 7 m	2.1 m x 8 m
Dryer Drum	Drive Type	Saddle type chain drive	Four wheeled Friction drive
Burner	Capacity	6.5 MW	11.8 MW	13.6 MW
	Type	High pressure, Fully automatic, modulating
	Fuel*	Diesel	Diesel	Diesel
Pollution Control Unit	Dual Stage Type
Primary	Centrifugal Double Cyclone	1.4 m x 3 m	1.4 m x 3 m	1.4 m x 3 m
Secondary		Wet Dust Type*	Bag House Filter
	Bag House Filter	Reverse air flow type*
	Filtering Area	285 m²	390 m²	435 m²
Hot elevator	Capacity	100 tph	140 tph	180 tph
Screening Unit	Type	Four deck vibrating
Screening Unit	Capacity	100 tph	140 tph	180 tph
Hot Aggregates Bin	Number of Bins	4	4	4
Aggregates Weigh Bin	Capacity	1000 kgs	1500 kgs	2000 kgs
Filler Weigh Bin	Capacity	200 kgs	300 kgs	300 kgs
Bitumen Weigh Bin	Capacity	150 kgs	225 kgs	225 kgs
Filler - Feeding System	Filler Elevator Capacity	14 tph	21 tph	21 tph
Filler - Feeding System	Filler Storage Bin Capacity	0.4 m³	0.6 m³	0.6 m³
Asphalt Feeding Pump	Capacity	240 lpm	450 lpm	450 lpm
Asphalt Spray Pump	Capacity	460 lpm	800 lpm	1000 lpm
Mixing Unit	Type	Twin shaft hot oil jacketed pugmill unit
Mixing Unit	Capacity	1000 kg / batch*	1500 kg / batch*	2000 kg / batch*
Cycle Time		45 secs.	45 secs.	45 secs.
Control Panel	Type	Fully computerised with manual over-ride

ACCESSORIES

Filler Silo	Capacity	4 / 10 / 15 / 30 / 40 tons
Bitumen Tanks	Capacity	15 / 30 / 50 tons
Heating Type	Direct / Hot Oil heating type
Hot Oil Heater	Type	Normal pressure horizontal tubular boiler
Hot Oil Heater	Capacity	500 000 Kcal / hr.
Hot Mix Storage Silo	Capacity	25 / 50 / 30 x 2 / 80 tons
