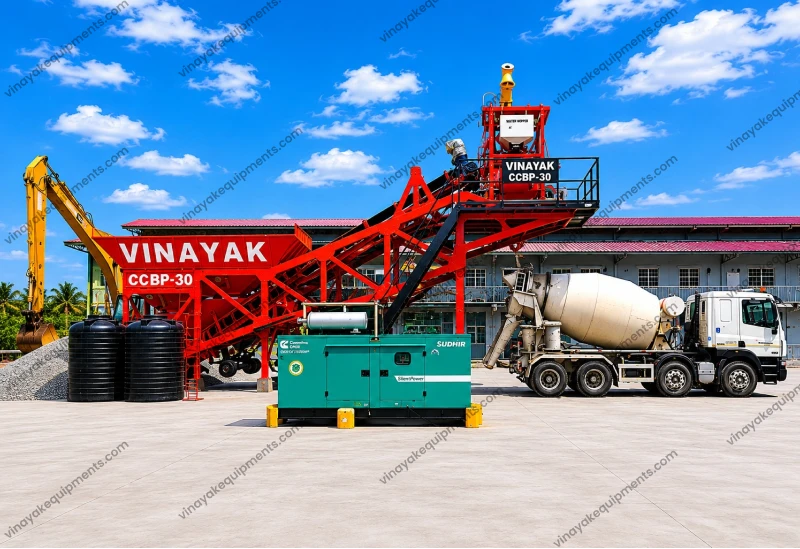

Mobile Concrete Batching Plant

Vinayak Concrete Batching Plants have been designed for maximum efficiency and reliability for producing all types of high quality concretes, with production outputs from 30m³  per hour.

Concrete Plant Manufacturer

There are many concrete plants running all over the India in different climatic conditions helping to build better infrastructure, better cities and better life.  Keeping it in mind we design stable and long lasting structures, Vinayak have one of the best after-sales teams which is ready to help in minutes where possible and we use high-quality components ( Like SICOMA, Wam, Janatics, Bonfinglioli ) which are available worldwide to make sure that our customers rely on equipment they purchased and are not bind to us in solving minor service issues.

concrete plant

Salient Features of Concrete Batching Plant:

  • Quick and easy installation and operation 3 to 4 days to start concrete production and one day for disassembling.
  • The plant can produce Dry Mix Concrete also.
  • Less space required for Installation due to its compact design.
  • Less foundation costs ( 80% less than conventional stationary concrete batching plants)

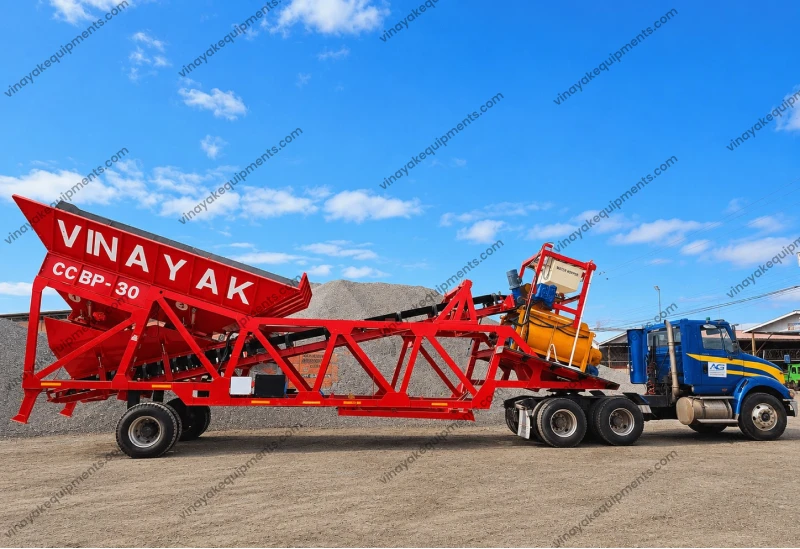

  • Mobility System for Concrete Plant with king pin attachment and pneumatic braking system. Single chassis mounting of the whole plant. ( Optional )
  • Less transportation costs.
  • Minimized concrete transportation costs.
  • The plant comes with fully prewired with Junction Box ( Complete with internal cabling).

Optional:

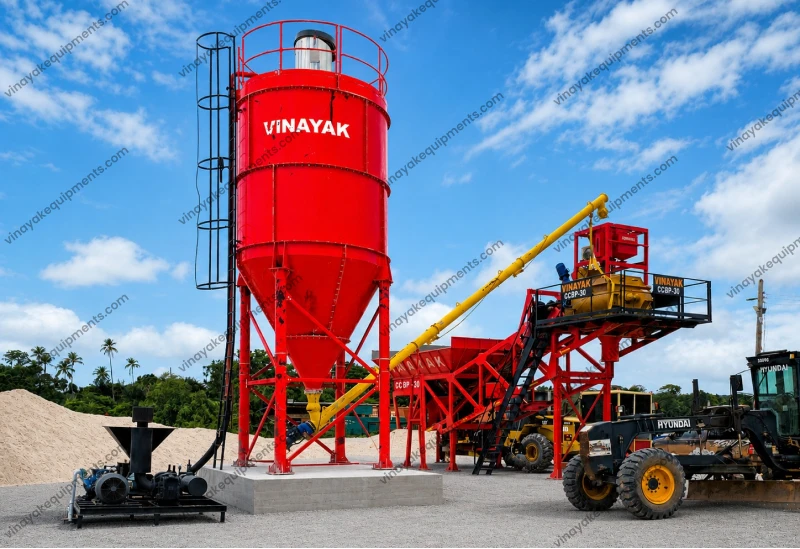

  • Cement Storage Silo
  • Silo Accessories.
  • Silo Feeding System.
  • Admixture Dosing System.
  • Water Connection.

Mobile concrete mixer & batching plant

Technical Specification of Concrete Batching Plant

Sr No. Model CCBP - 30
1

Concrete Output

30 m3
2 Aggregate Storage System Compartment Bin
a. Aggregate Storage Bins/Capacity 4 Nos./ 7.5 m3
b. Vibrator Motor 1 No.
3 Aggregate Weighing System & Conveying
a. Weighing Hopper Yes
b. Electromagetic Load Cell 4 Nos.
4 Mixer Unit
a. Type Planetary / Twin Shaft
b. Capacity 1125 / 750
c. Side & Bottom Lining Anti Wear
d. Mixing & Side Scrapper Blade Anti Wear
5 Cement / Flyash Weighing System
a. Cement / Flyash Hopper Capacity 500 kgs.
b. Electromagnetic Load Cell 3 Nos.
c. Vibrator Motoor 1 No.
6 Cement Screw conveyor with Bag Hopper Yes / 50 Bags
7 Pneumatic System : Air Coompressor 3 hp
8 PLC Based Control Panel Yes
9 Water Weighting System
a) Water Hopper Capacity 450 Ltr.
b) Electro Magnetic Load cell 3 Nos.
10 Additive System
a) Weighing Container Capacity 10 Lts.
b) Load cell 1 no. / 50 kg
11 Connected Load For Standard Plant-HP / Kva 82.5
